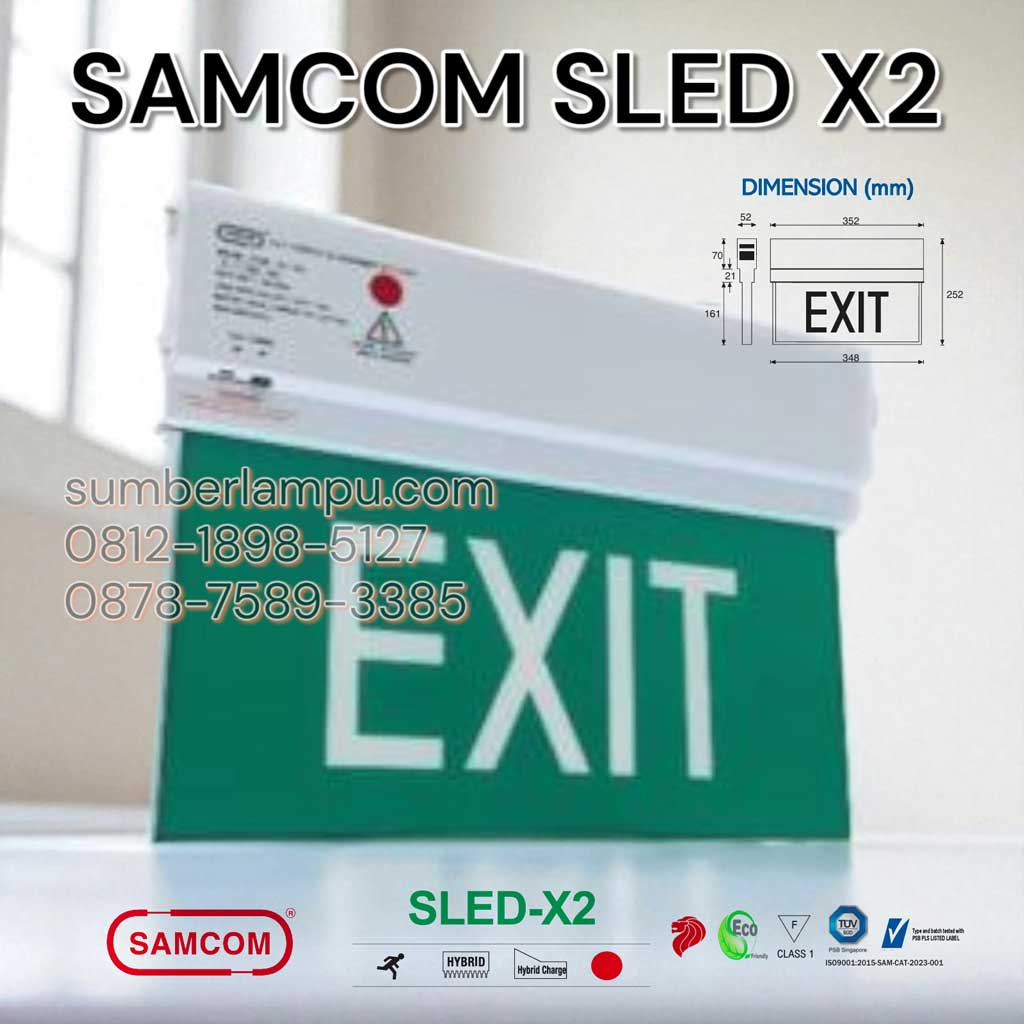

Lampu SAMCOM SLED X2 Emergency
Lampu SAMCOM SLED X2 Emergency Lampu SAMCOM SLED X2 Emergency fire retardant, menggunakan tipe baterai nickel cadmium, model single face (1sisi) & double face (2sisi).
Lihat produk exit lainnya: Lampu Exit EXPLOSION Proof LED Terbaru.
Spesifikasi lampu exit Samcom ini sebagai berikut:
- brand: Samcom
- INPUT VOLTAGE : 220 ~ 240Vac 50/60Hz ± 10%, A: 0.019 Pf: 0.44
- BATTERY : 3.6V 0.9Ah High temp rated Nickel Cadmium cells or others, 1.5Ah High temp rated Lithium Iron Phosphate
- LAMP USED : SMT White LED strip > 30,000 hrs
- RATED PERIOD : > 2 hrs or others
- MODE : Maintained
- OPERATION TEMPERATURE : ta 40 °C
- POWER CONSUMPTION: 2.5 Watt
- CHARGE MONITOR : Super bright Green LED 5mm Ø
- RECHARGE PERIOD : 16 ~ 24 hrs
- EMERGENCY LUMINANCE: > 8 cd/m2
- ELECTROMAGNETIC FIELD: 17m gause @ 0.1m
- CHARGER : Hybrid controlled charger
- PROTECTION : Low volt cut-off to prevent battery over discharge, Incoming AC fuse and Battery DC fuse, Tropical climate protection coating on hybrid control circuit
- CONSTRUCTION : Electrode galvanised sheet steel with epoxy powder coating, 20mm Ø K/O hole, Fire Retardant Acrylic diffuser
- DIMENSION : 352mm(L) x 52(W) x 252mm(H)
- WEIGHT : 1.25kg (Net) / 1.45kg (Gross)
- CARTON / DIMENSION : Double wall corrugated / 415mm(L) x 70mm(W) x 295mm(H)
- COMPLIANCE : EN IEC 61558-1:2019, SS263-2/A2: 2008, SS563-1:2010, SS563-2/A1:2013
